How to Export a DIBS AI case as a Model with Brackets in STL
Exporting DIBS AI Model with Brackets

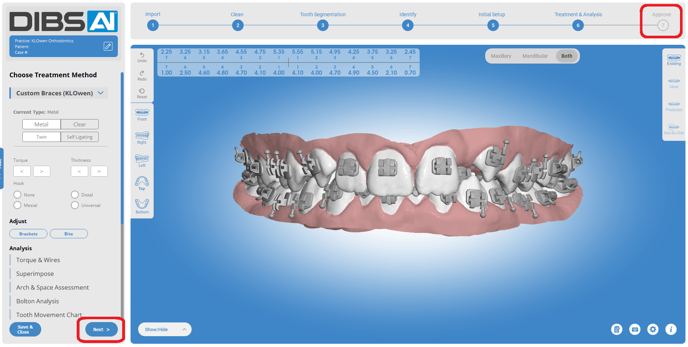

- Open completed DIBS AI case; press “Next” as needed to go to last step, “Step 7.”

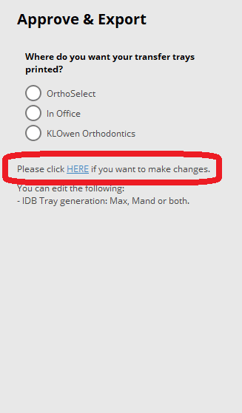

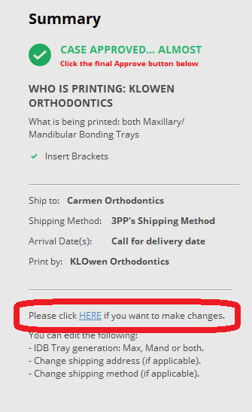

- Click where it says “Please click HERE if you want to make changes” both at the “Summary” and “Approve & Export” pages.

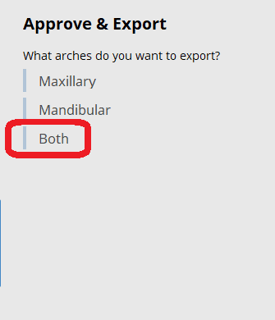

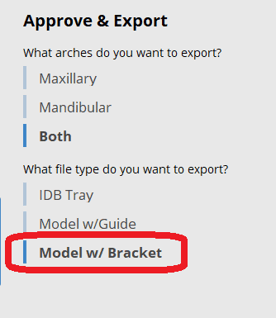

- Select “Both” when it asks “What arches do you want to export?” Then select “Model w/ Bracket” when it asks “What file type do you want to export?”

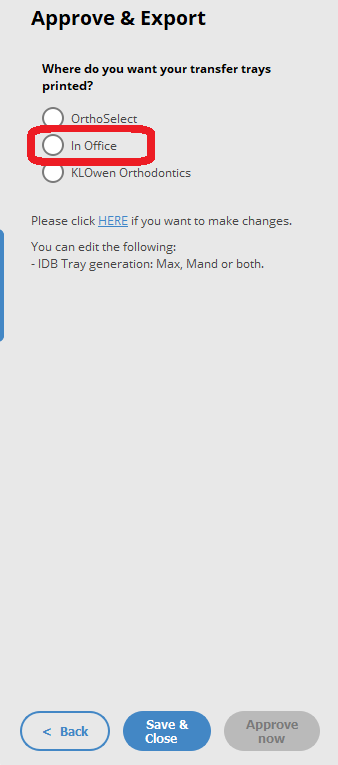

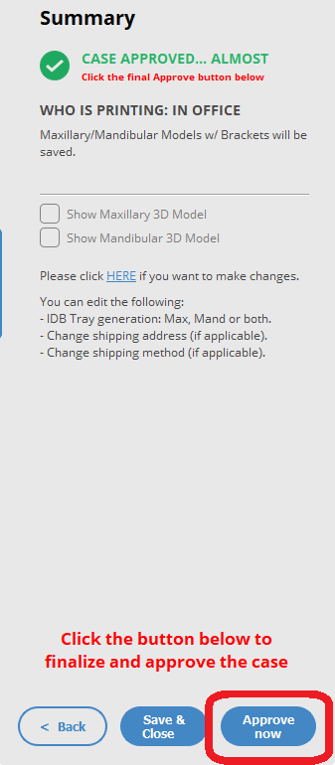

- Select “In Office” when it asks “Where do you want your transfer trays printed?” Then finish by clicking “Approve Now” to export the files.

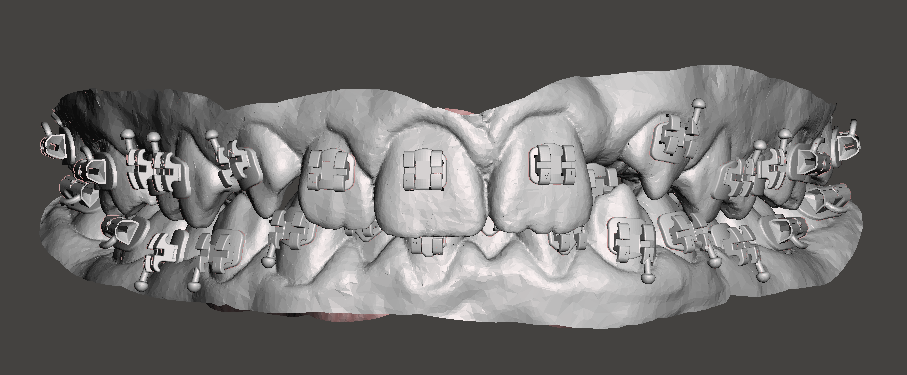

- The exported STL files will be in the following location:
- C:\Users\Public\Documents\OrthoSelect\04 Export
